6ton Hydraulic Punch Kit w/ 6 Dies Yellow

Details:
Features:

Complete Punch Tools - Hydraulic punch tool kit features 1pc 6-ton pump; 2pcs draw studs; 1 set of spacers and 6 sets of interchangeable dies & punches for conduit fitting size of 1/2"; 3/4"; 1"; 1 1/4"; 1 1/2" and 2"; can drill different sizes holes on stainless steel; aluminum; steel; plastic; etc; 1/8' (11 gauge) max punching thickness for steel and 1/16' (14 gauge) for stainless steel; perfect to be used for different drilling projects

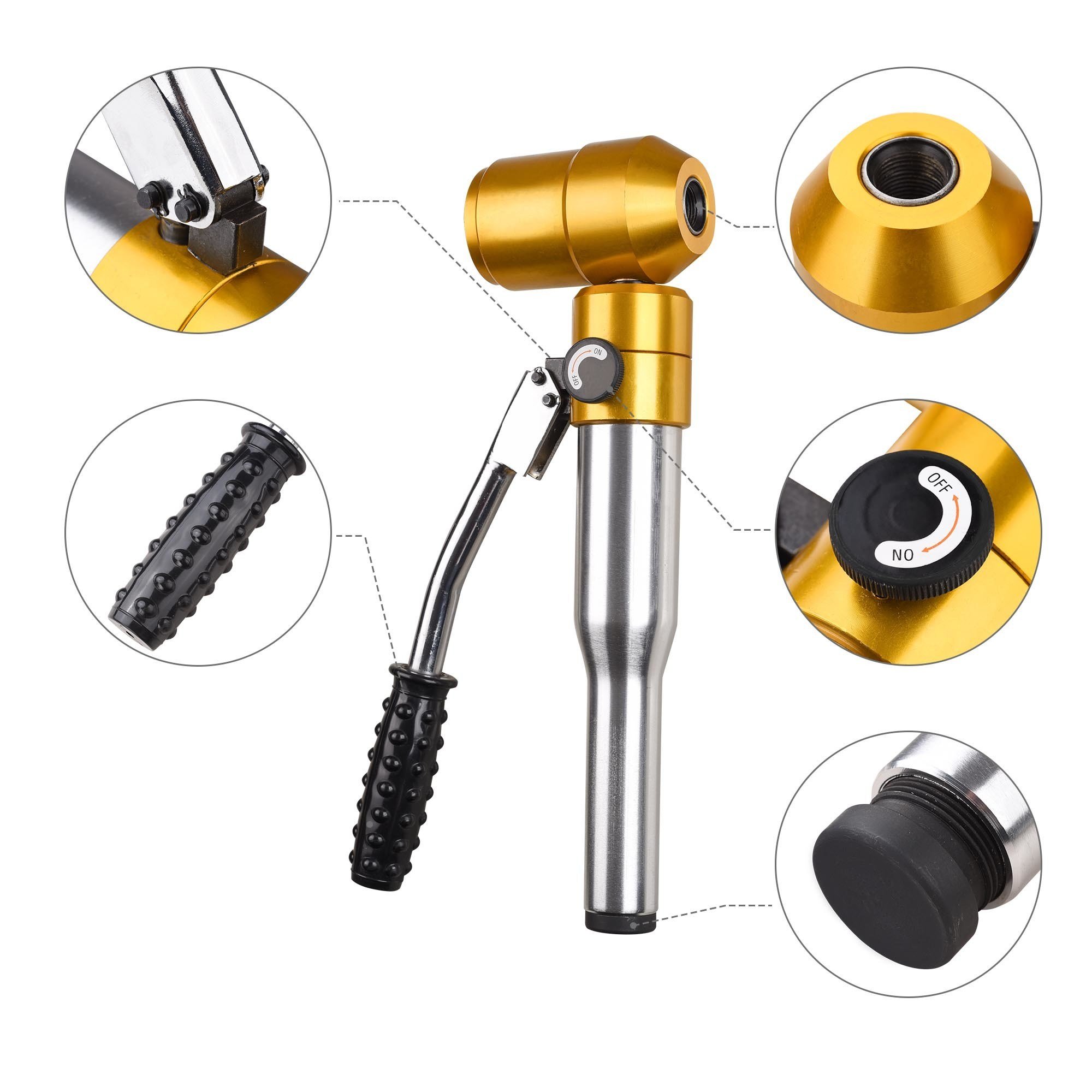

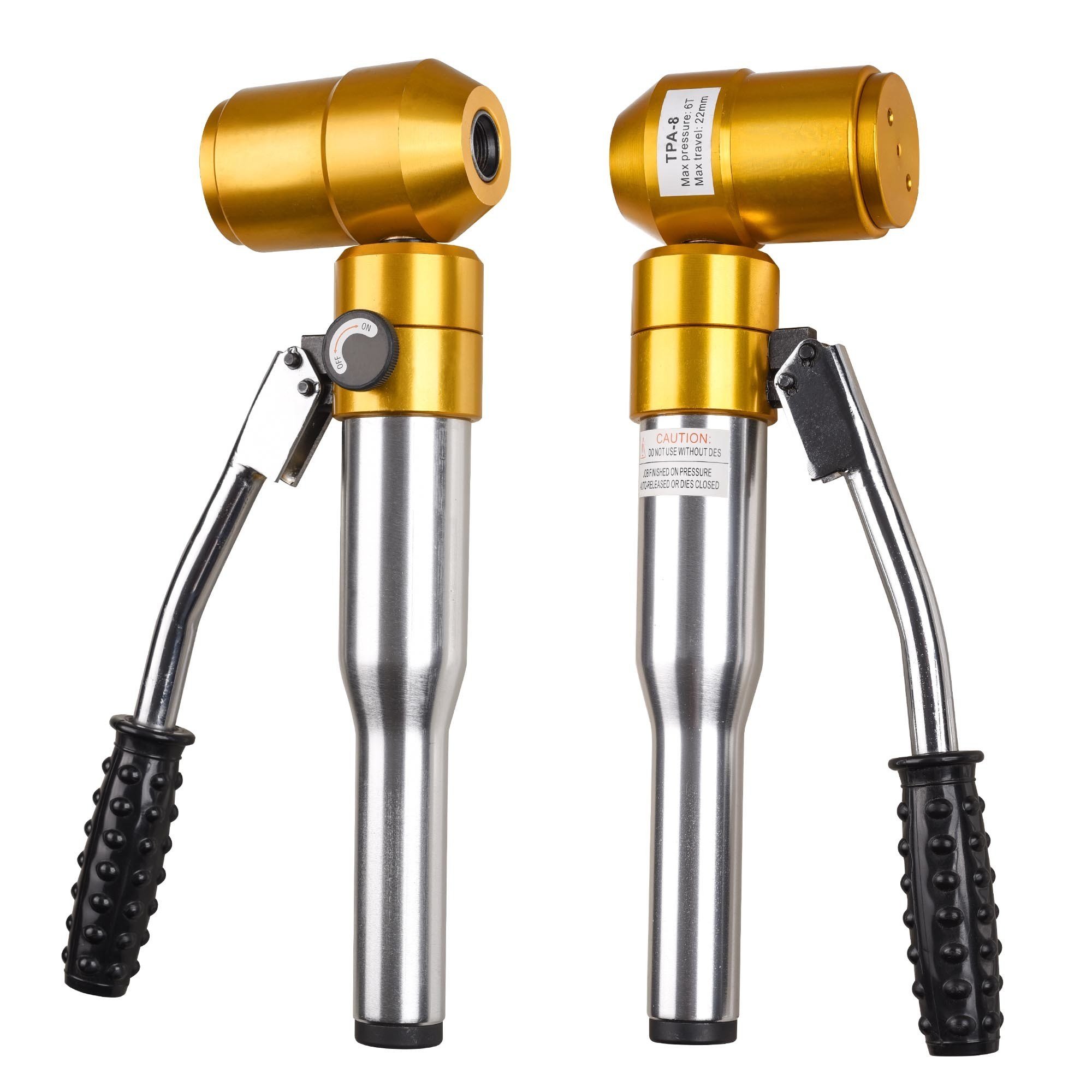

Efficient Hydraulic Design - Hydraulic mechanism of the pump produces a strong force of 6T (59KN) for providing great punching accuracy and fast punching speed which is 10 times much faster than common wrenches; ideal for improving working efficiency; rotary 'on/off' knob on the pump for quick releasing pressure; adding more safety
360 Degree Rotation - 360 Degrees rotatable punch head for meeting your punching needs; you can adjust it flexibly to use in narrow areas; plastic grip at the end of the long handle for labor saving and comfortable operation
Sturdy Metal Construction - 40Cr steel dies and aluminum alloy pump body for ensuring high strength; sturdiness and durability; stable construction is suitable for heavy-duty and frequent jobs
Portable & Wide Application - Blow-molded case with handle for convenient storage and keeping all accessories in place; portable for fast work; widely used on installing and repairing wire pipeline; signal lamp and instrument on construction sites; metallurgy; petrol; electronics; electrical appliance; chemical industry; ship and machinery; etc.
Specification:

Pump Dimension(LxWxH): 13 3/4' x 7 1/16' x 2 9/16' (35 x 18 x 6.5 cm)

Extendable Handle Range: 2 3/8' to 8 11/16' (6 to 22 cm)
Plastic Case Dimension(LxWxH): 16 1/8' x 9 13/16' x 4 5/16' (41 x 25 x 11 cm)
6 Punch Dies: 1/2"(22.5mm); 3/4"(28.3mm); 1"(34.6mm); 1 1/4"(43.2mm); 1 1/2"(49.6mm); 2"(61.5mm)
Max Pressure: 6 ton
Stroke: 7/8' (22 mm)
Material: 45# Steel; Aluminum Alloy; 40Cr Steel
Max Thickness for Steel: 1/8' (11 gauge)
Max Thickness for Stainless Steel: 1/16' (14 gauge)
Net Weight: 12.6 Lbs (5.7 kg)

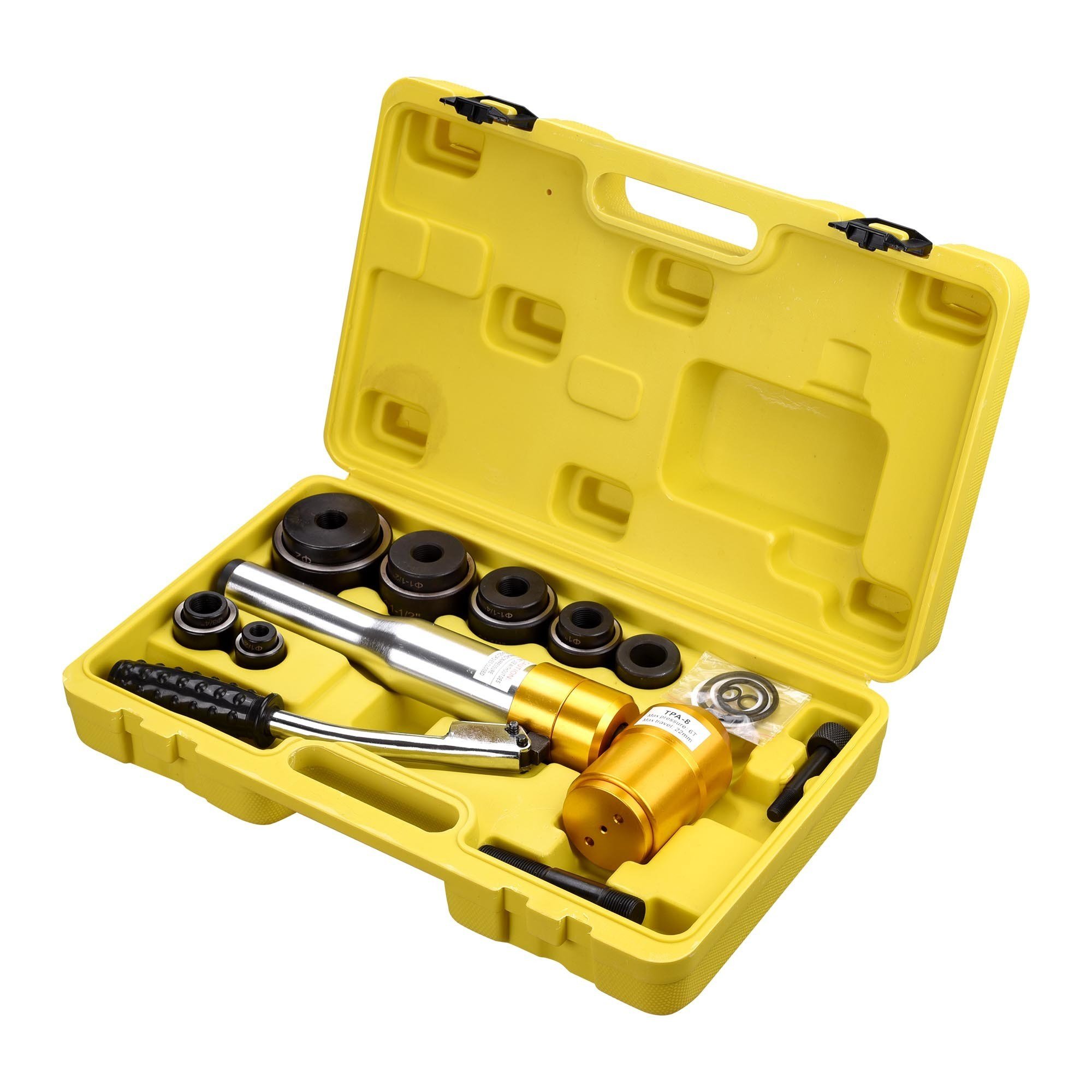

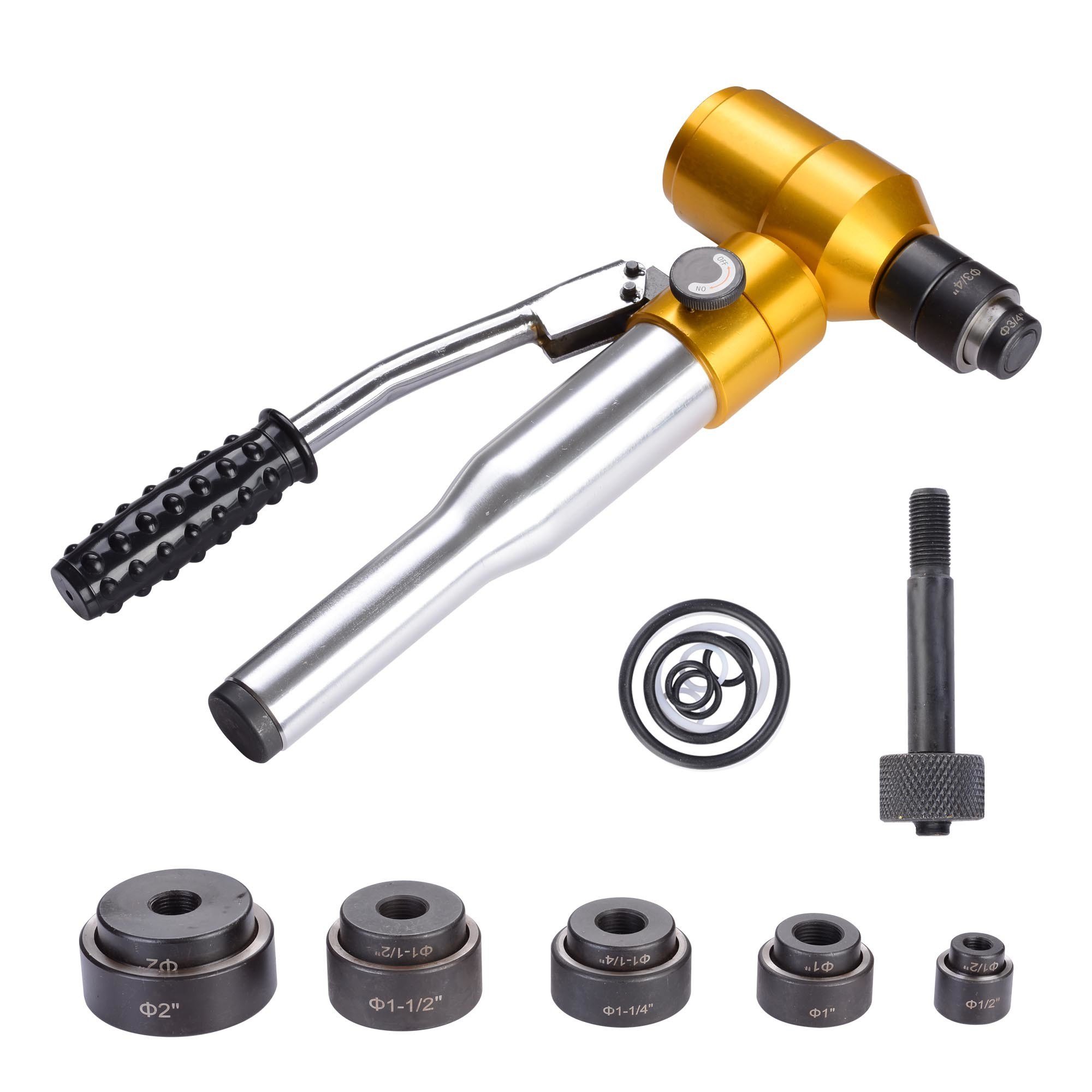

Package Content:

1x 6-Ton Pump

6 Sets of Dies & Punches
2x Draw Studs
1 Set of Spacer

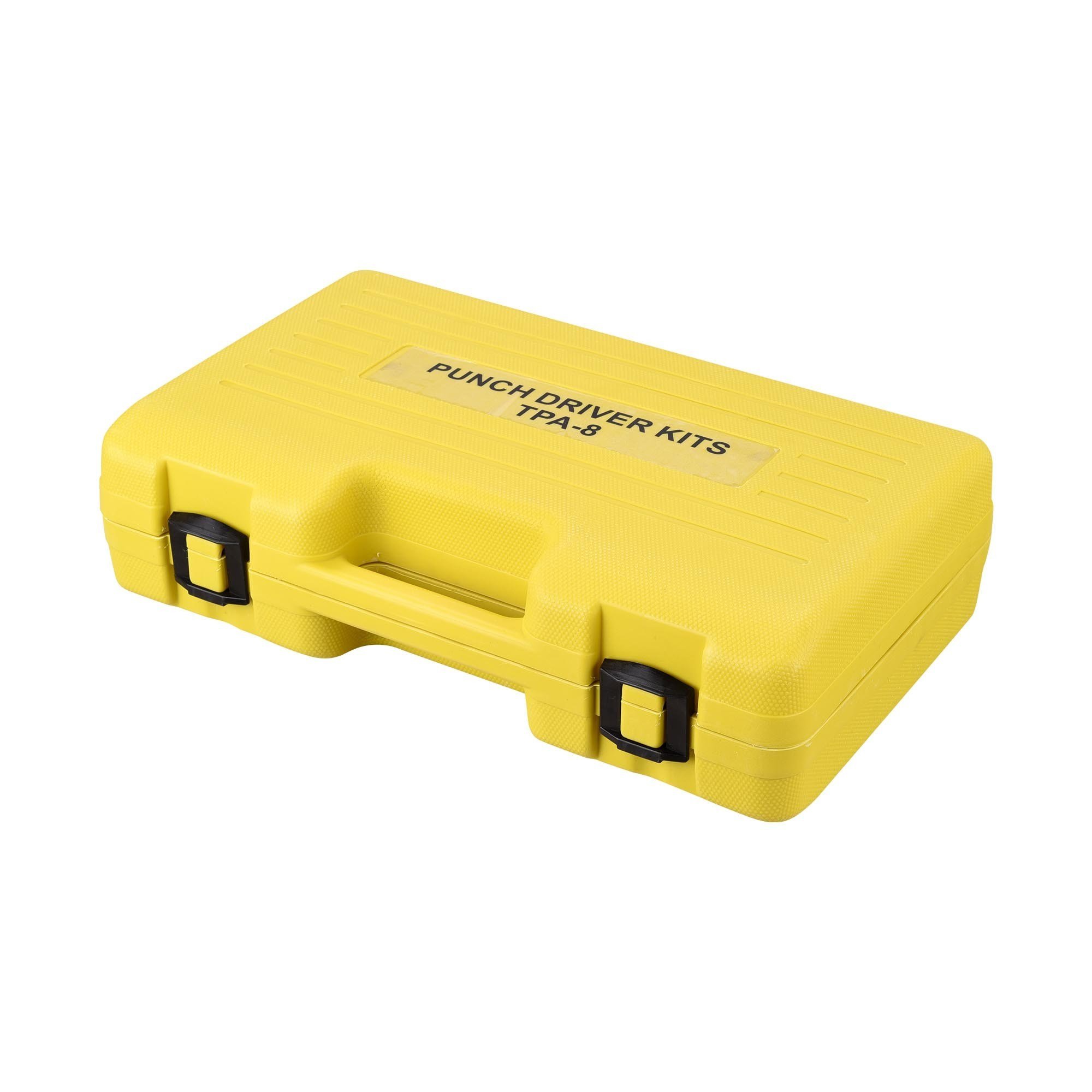

1x Plastic Carrying Case
1x Manual
Notice:Do Not operate the pump after ram motion stops. Continuing to operate the pump lever after the ram stops will damage the ramNotes: Attention: Ebay MAP:$129.9; Other platform MAP: $139.9.
